Fixed Industrial Barcode Scanners
We offer a variety of barcode scanner products to meet the needs of different industries and application scenarios, providing professional solutions for you from retail to industrial environments.
Fixed Series

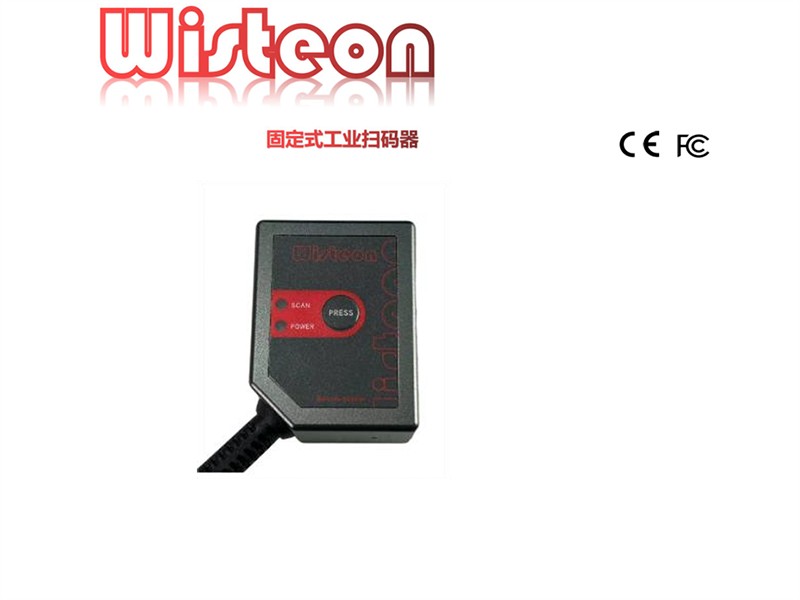

W150L Fixed Industrial Barcode Scanner
Aluminum alloy housing, compact size, strong anti-interference ability, easy to integrate into other equipment
DB15 cable transmission
Supports multiple interfaces {USB (KBW, COM, HID), RS232, etc.} simultaneously for different application scenarios
Excellent decoding performance: Suitable for reading standard carrier barcodes and various printed barcodes with outstanding decoding capability
1. Scanning Performance Parameters
| Parameter Item | Specification Description |
|---|---|
| Pixel | 1280 (H) * 1024 (V) |
| Illumination | White High Intensity Light |
| Aiming | Red Aiming Light |
| Reading Modes | Key Mode, Auto-sensing Mode, External Trigger Mode, Serial Command Mode |
| Reading Symbologies - 1D | UPC A, UPC E, EAN 8, EAN 13, Code 128, Code 39, Code 93, Code 32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar 14, GS1 DataBar Expanded, GS1 DataBar Limited, Composite Code A, Composite Code B, Composite Code C |
| Reading Symbologies - 2D | Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Hanxin Code |
| Reading Precision | 1D: ≥3 mil; 2D (HD): ≥5 mil; 2D (SR): ≥7 mil |
| Reading Depth of Field | QR (5mil): 40mm~100mm Code39(3mil): 35mm~140mm Code39(5mil): 35mm~190mm EAN(13mil): 50mm~330mm |
| Field of View | Horizontal 43° (H), Vertical 36° (V) |
| Scanning Angle | Left/Right ±60°, Up/Down ±60°, Rotation 360° |
| Print Contrast | ≥20% (UPC/EAN 100%, PCS 90%) |
2. Mechanical & Electrical Parameters
| Parameter Item | Specification Description |
|---|---|
| Dimensions | 49.2(W) × 37.5 (D) × 25(H) (mm) |
| Weight | Approximately 106g |
| Communication Interfaces | USB, RS-232, Virtual COM Port |
| Prompt Methods | Buzzer, LED Indicator |
| Operating Voltage | DC 3.3V±5% |
| Operating Current | Typical: 260 mA ±5%; Maximum: 380 mA ±5% |
| Safety Standards (EMC) | CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI |
3. Environmental Parameters
| Parameter Item | Specification Description |
|---|---|
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -40℃~+70℃ |
| Relative Humidity | 5%~95% (Non-condensing) |
| Ambient Light Intensity | 0~8,600Lux (Fluorescent); 0~100,000Lux (Sunlight) |
4. Product Features
- Aluminum alloy housing with compact size, strong anti-interference ability, easy to integrate into other equipment
- DB15 cable transmission
- Supports multiple interfaces simultaneously (USB (KBW, COM, HID), RS232, etc.) for different application scenarios
- Excellent decoding performance: Suitable for reading standard carrier barcodes and various printed barcodes with outstanding decoding capability
- High-brightness LED illumination system: White high-brightness LED fill light system with red LED aiming
- Global exposure: Equipped with global high-speed exposure for faster scanning speed, up to 120FPS (frames per second)
- Supports reading of low-contrast, damaged, distorted and other special-shaped printed barcodes
- Built-in 1280*1024 pixel image sensor for high-efficiency image sampling
- Adopts universal 12pin ZIF connector and 3.3V power supply, supporting direct TTL and USB signal output
- Equipped with buzzer, LED indicator interfaces and external Trigger signal input I/O
Industrial Series

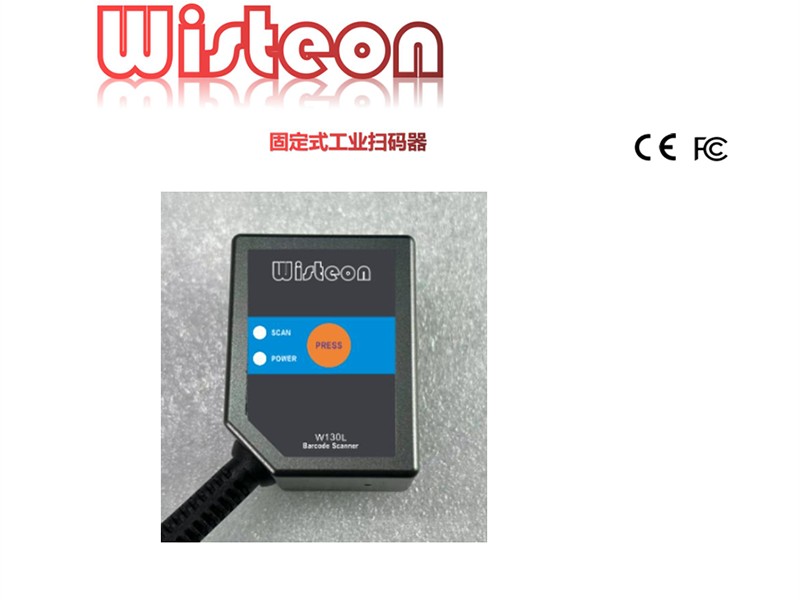

W130L Fixed Industrial Barcode Scanner
Aluminum alloy housing, compact size, strong anti-interference ability, easy to integrate into other equipment
DB15 cable transmission
Supports multiple interfaces {USB (KBW, COM, HID), RS232, etc.} simultaneously for different application scenarios
Global exposure: Equipped with global high-speed exposure for faster scanning speed, up to 120FPS (frames per second)
1. Scanning Performance Parameters
| Parameter Item | Specification Description |
|---|---|
| Pixel | 1280 (H) * 1024 (V) |
| Illumination | White High Intensity Light |
| Aiming | Red Aiming Light |
| Reading Modes | Key Mode, Auto-sensing Mode, External Trigger Mode, Serial Command Mode |
| Reading Symbologies - 1D | UPC A, UPC E, EAN 8, EAN 13, Code 128, Code 39, Code 93, Code 32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar 14, GS1 DataBar Expanded, GS1 DataBar Limited, Composite Code A, Composite Code B, Composite Code C |
| Reading Symbologies - 2D | Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Hanxin Code |
| Reading Precision | 1D: ≥3 mil; 2D (HD): ≥5 mil; 2D (SR): ≥7 mil |
| Reading Depth of Field | QR (5mil): 40mm~100mm Code39(3mil): 35mm~140mm Code39(5mil): 35mm~190mm EAN(13mil): 50mm~330mm |
| Field of View | Horizontal 43° (H), Vertical 36° (V) |
| Scanning Angle | Left/Right ±60°, Up/Down ±60°, Rotation 360° |
| Print Contrast | ≥20% (UPC/EAN 100%, PCS 90%) |
2. Mechanical & Electrical Parameters
| Parameter Item | Specification Description |
|---|---|
| Dimensions | 49.2(W) × 37.5 (D) × 25(H) (mm) |
| Weight | Approximately 106g |
| Communication Interfaces | USB, RS-232, Virtual COM Port |
| Prompt Methods | Buzzer, LED Indicator |
| Operating Voltage | DC 3.3V±5% |
| Operating Current | Typical: 260 mA ±5%; Maximum: 380 mA ±5% |
| Safety Standards (EMC) | CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI |
3. Environmental Parameters
| Parameter Item | Specification Description |
|---|---|
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -40℃~+70℃ |
| Relative Humidity | 5%~95% (Non-condensing) |
| Ambient Light Intensity | 0~8,600Lux (Fluorescent); 0~100,000Lux (Sunlight) |
4. Product Features
- Aluminum alloy housing with compact size, strong anti-interference ability, easy to integrate into other equipment
- DB15 cable transmission
- Supports multiple interfaces simultaneously (USB (KBW, COM, HID), RS232, etc.) for different application scenarios
- Excellent decoding performance: Suitable for reading standard carrier barcodes and various printed barcodes with outstanding decoding capability
- High-brightness LED illumination system: White high-brightness LED fill light system with red LED aiming
- Global exposure: Equipped with global high-speed exposure for faster scanning speed, up to 120FPS (frames per second)
- Supports reading of low-contrast, damaged, distorted and other special-shaped printed barcodes
- Built-in 1280*1024 pixel image sensor for high-efficiency image sampling
- Adopts universal 12pin ZIF connector and 3.3V power supply, supporting direct TTL and USB signal output
- Equipped with buzzer, LED indicator interfaces and external Trigger signal input I/O
Fixed Series

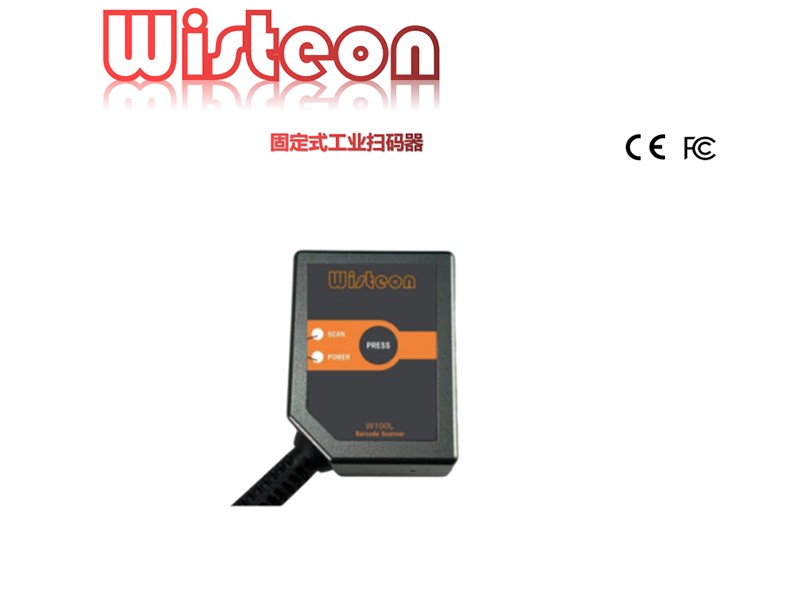

W100L Fixed Industrial Barcode Scanner
Aluminum alloy housing, compact size, strong anti-interference ability, easy to integrate into other equipment
DB15 cable transmission
Supports multiple interfaces {USB (KBW, COM, HID), RS232, etc.} simultaneously for different application scenarios
Excellent decoding performance: Suitable for reading standard carrier barcodes and various printed barcodes with outstanding decoding capability
1. Scanning Performance Parameters
| Parameter Item | Specification Description |
|---|---|
| Pixel | 1280 (H) * 1024 (V) |
| Illumination | White High Intensity Light |
| Aiming | Red Aiming Light |
| Reading Modes | Key Mode, Auto-sensing Mode, External Trigger Mode, Serial Command Mode |
| Reading Symbologies - 1D | UPC A, UPC E, EAN 8, EAN 13, Code 128, Code 39, Code 93, Code 32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar 14, GS1 DataBar Expanded, GS1 DataBar Limited, Composite Code A, Composite Code B, Composite Code C |
| Reading Symbologies - 2D | Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Hanxin Code |
| Reading Precision | 1D: ≥3 mil; 2D (HD): ≥5 mil; 2D (SR): ≥7 mil |
| Reading Depth of Field | QR (5mil): 40mm~100mm Code39(3mil): 35mm~140mm Code39(5mil): 35mm~190mm EAN(13mil): 50mm~330mm |
| Field of View | Horizontal 43° (H), Vertical 36° (V) |
| Scanning Angle | Left/Right ±60°, Up/Down ±60°, Rotation 360° |
| Print Contrast | ≥20% (UPC/EAN 100%, PCS 90%) |
2. Mechanical & Electrical Parameters
| Parameter Item | Specification Description |
|---|---|
| Dimensions | 49.2(W) × 37.5 (D) × 25(H) (mm) |
| Weight | Approximately 106g |
| Communication Interfaces | USB, RS-232, Virtual COM Port |
| Prompt Methods | Buzzer, LED Indicator |
| Operating Voltage | DC 3.3V±5% |
| Operating Current | Typical: 260 mA ±5%; Maximum: 380 mA ±5% |
| Safety Standards (EMC) | CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI |
3. Environmental Parameters
| Parameter Item | Specification Description |
|---|---|
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -40℃~+70℃ |
| Relative Humidity | 5%~95% (Non-condensing) |
| Ambient Light Intensity | 0~8,600Lux (Fluorescent); 0~100,000Lux (Sunlight) |
4. Product Features
- Aluminum alloy housing with compact size, strong anti-interference ability, easy to integrate into other equipment
- DB15 cable transmission
- Supports multiple interfaces simultaneously (USB (KBW, COM, HID), RS232, etc.) for different application scenarios
- Excellent decoding performance: Suitable for reading standard carrier barcodes and various printed barcodes with outstanding decoding capability
- High-brightness LED illumination system: White high-brightness LED fill light system with red LED aiming
- Global exposure: Equipped with global high-speed exposure for faster scanning speed, up to 120FPS (frames per second)
- Supports reading of low-contrast, damaged, distorted and other special-shaped printed barcodes
- Built-in 1280*1024 pixel image sensor for high-efficiency image sampling
- Adopts universal 12pin ZIF connector and 3.3V power supply, supporting direct TTL and USB signal output
- Equipped with buzzer, LED indicator interfaces and external Trigger signal input I/O
Industrial Series

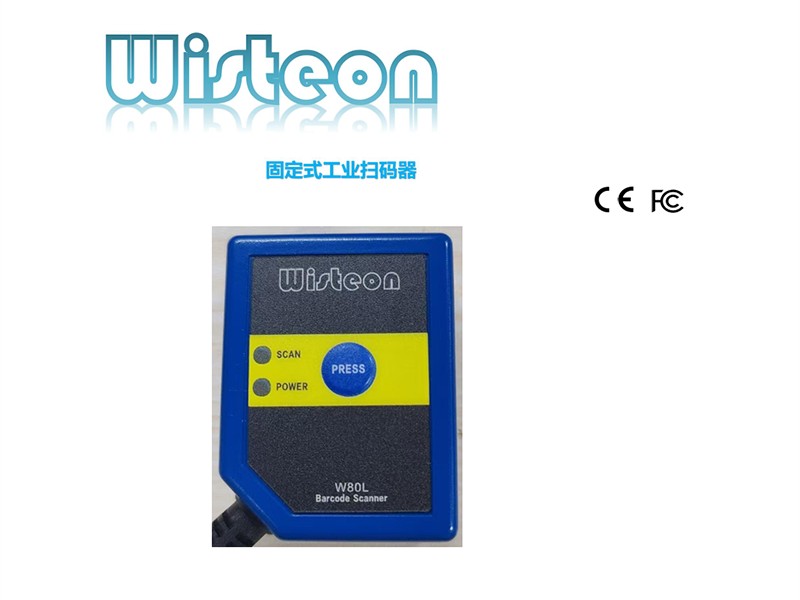

W80L Fixed Industrial Barcode Scanner
Aluminum alloy housing, compact size, strong anti-interference ability, easy to integrate into other equipment
DB15 cable transmission
Supports multiple interfaces {USB (KBW, COM, HID), RS232, etc.} simultaneously for different application scenarios
Excellent decoding performance: Suitable for reading standard carrier barcodes and various printed barcodes with outstanding decoding capability
1. Scanning Performance Parameters
| Parameter Item | Specification Description |
|---|---|
| Pixel | 1280 (H) * 1024 (V) |
| Illumination | White High Intensity Light |
| Aiming | Red Aiming Light |
| Reading Modes | Key Mode, Auto-sensing Mode, External Trigger Mode, Serial Command Mode |
| Reading Symbologies - 1D | UPC A, UPC E, EAN 8, EAN 13, Code 128, Code 39, Code 93, Code 32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar 14, GS1 DataBar Expanded, GS1 DataBar Limited, Composite Code A, Composite Code B, Composite Code C |
| Reading Symbologies - 2D | Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Hanxin Code |
| Reading Precision | 1D: ≥3 mil; 2D (HD): ≥5 mil; 2D (SR): ≥7 mil |
| Reading Depth of Field | QR (5mil): 40mm~100mm Code39(3mil): 35mm~140mm Code39(5mil): 35mm~190mm EAN(13mil): 50mm~330mm |
| Field of View | Horizontal 43° (H), Vertical 36° (V) |
| Scanning Angle | Left/Right ±60°, Up/Down ±60°, Rotation 360° |
| Print Contrast | ≥20% (UPC/EAN 100%, PCS 90%) |
2. Mechanical & Electrical Parameters
| Parameter Item | Specification Description |
|---|---|
| Dimensions | 49.2(W) × 37.5 (D) × 25(H) (mm) |
| Weight | Approximately 106g |
| Communication Interfaces | USB, RS-232, Virtual COM Port |
| Prompt Methods | Buzzer, LED Indicator |
| Operating Voltage | DC 3.3V±5% |
| Operating Current | Typical: 260 mA ±5%; Maximum: 380 mA ±5% |
| Safety Standards (EMC) | CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI |
3. Environmental Parameters
| Parameter Item | Specification Description |
|---|---|
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -40℃~+70℃ |
| Relative Humidity | 5%~95% (Non-condensing) |
| Ambient Light Intensity | 0~8,600Lux (Fluorescent); 0~100,000Lux (Sunlight) |
4. Product Features
- Aluminum alloy housing with compact size, strong anti-interference ability, easy to integrate into other equipment
- DB15 cable transmission
- Supports multiple interfaces simultaneously (USB (KBW, COM, HID), RS232, etc.) for different application scenarios
- Excellent decoding performance: Suitable for reading standard carrier barcodes and various printed barcodes with outstanding decoding capability
- High-brightness LED illumination system: White high-brightness LED fill light system with red LED aiming
- Global exposure: Equipped with global high-speed exposure for faster scanning speed, up to 120FPS (frames per second)
- Supports reading of low-contrast, damaged, distorted and other special-shaped printed barcodes
- Built-in 1280*1024 pixel image sensor for high-efficiency image sampling
- Adopts universal 12pin ZIF connector and 3.3V power supply, supporting direct TTL and USB signal output
- Equipped with buzzer, LED indicator interfaces and external Trigger signal input I/O
Fixed Series

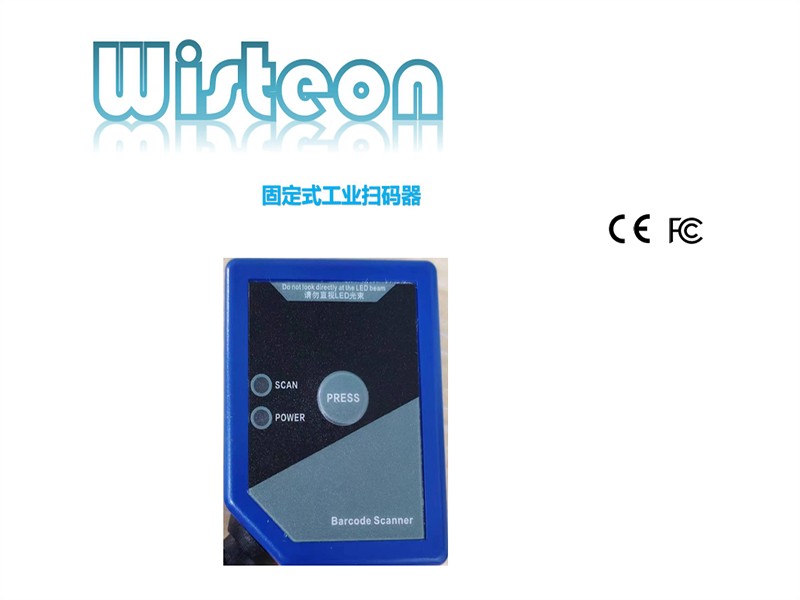

W60L Fixed Industrial Barcode Scanner
Aluminum alloy housing, compact size, strong anti-interference ability, easy to integrate into other equipment
DB15 cable transmission
Supports multiple interfaces {USB (KBW, COM, HID), RS232, etc.} simultaneously for different application scenarios
Excellent decoding performance: Suitable for reading standard carrier barcodes and various printed barcodes with outstanding decoding capability
1. Scanning Performance Parameters
| Parameter Item | Specification Description |
|---|---|
| Pixel | 1280 (H) * 1024 (V) |
| Illumination | White High Intensity Light |
| Aiming | Red Aiming Light |
| Reading Modes | Key Mode, Auto-sensing Mode, External Trigger Mode, Serial Command Mode |
| Reading Symbologies - 1D | UPC A, UPC E, EAN 8, EAN 13, Code 128, Code 39, Code 93, Code 32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar 14, GS1 DataBar Expanded, GS1 DataBar Limited, Composite Code A, Composite Code B, Composite Code C |
| Reading Symbologies - 2D | Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Hanxin Code |
| Reading Precision | 1D: ≥3 mil; 2D (HD): ≥5 mil; 2D (SR): ≥7 mil |
| Reading Depth of Field | QR (5mil): 40mm~100mm Code39(3mil): 35mm~140mm Code39(5mil): 35mm~190mm EAN(13mil): 50mm~330mm |
| Field of View | Horizontal 43° (H), Vertical 36° (V) |
| Scanning Angle | Left/Right ±60°, Up/Down ±60°, Rotation 360° |
| Print Contrast | ≥20% (UPC/EAN 100%, PCS 90%) |
2. Mechanical & Electrical Parameters
| Parameter Item | Specification Description |
|---|---|
| Dimensions | 49.2(W) × 37.5 (D) × 25(H) (mm) |
| Weight | Approximately 106g |
| Communication Interfaces | USB, RS-232, Virtual COM Port |
| Prompt Methods | Buzzer, LED Indicator |
| Operating Voltage | DC 3.3V±5% |
| Operating Current | Typical: 260 mA ±5%; Maximum: 380 mA ±5% |
| Safety Standards (EMC) | CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI |
3. Environmental Parameters
| Parameter Item | Specification Description |
|---|---|
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -40℃~+70℃ |
| Relative Humidity | 5%~95% (Non-condensing) |
| Ambient Light Intensity | 0~8,600Lux (Fluorescent); 0~100,000Lux (Sunlight) |
4. Product Features
- Aluminum alloy housing with compact size, strong anti-interference ability, easy to integrate into other equipment
- DB15 cable transmission
- Supports multiple interfaces simultaneously (USB (KBW, COM, HID), RS232, etc.) for different application scenarios
- Excellent decoding performance: Suitable for reading standard carrier barcodes and various printed barcodes with outstanding decoding capability
- High-brightness LED illumination system: White high-brightness LED fill light system with red LED aiming
- Global exposure: Equipped with global high-speed exposure for faster scanning speed, up to 120FPS (frames per second)
- Supports reading of low-contrast, damaged, distorted and other special-shaped printed barcodes
- Built-in 1280*1024 pixel image sensor for high-efficiency image sampling
- Adopts universal 12pin ZIF connector and 3.3V power supply, supporting direct TTL and USB signal output
- Equipped with buzzer, LED indicator interfaces and external Trigger signal input I/O
Contact Us
Whether you have any questions or needs, our professional team will provide you with timely and thoughtful services.
Company Address
Shenzhen City, Guangdong ,China
Contact Phone
+86 18575568070
Email Address
Jim.Zeng@wisteon.com
Working Hours
Monday to Friday: 9:00 - 18:00
Saturday: 10:00 - 16:00 (except holidays)
